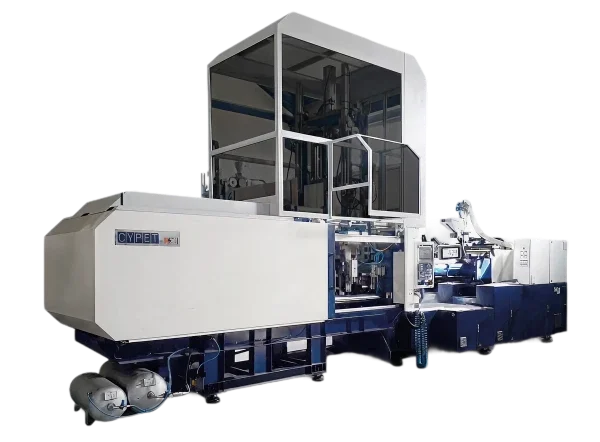

The CYPET K38 is a fully automatic single stage injection stretch blow molding machine, capable of producing finished containers directly from PET resin. The system utilizes CYPET’s patented technology that uses only two stations, one for injection molding the PET preforms, and the second to stretch blow mold the PET containers. It’s large platen size and large shot size allows production of heavier containers, up to 75Ltr in size, with up to 320 mm neck diameter.
Highly optimized, energy-saving servo-hydraulic technology as well as the use of an air recovery system as standard, reduces energy consumption by up to 40% (0.31kWh/kg of finished bottles). The machine’s generous clamping force and platen size, allows molds with higher cavities achieving higher output with less investment compared to conventional technologies. The molds’ hot runner is naturally balanced, enabling consistent mold filling for any preform weight and valve gated to eliminate stringing. Bottle ejection occurs via free drop as standard, or optionally via an automatic take out system onto a conveyor for downstream processing.
The K38 can also operate as a standard injection molding machine for a wide range of plastic resins, maximizing flexibility and investment value.
Advanced servo-hydraulic technology and a built-in air recovery system reduce energy consumption by up to 40%, improving efficiency while lowering production costs.
With a large platen and shot size, the K38 is engineered for heavier PET containers up to 75L with neck diameters up to 320mm, ideal for demanding industrial applications.
The machine’s tight footprint of 9m x 2.1m saves precious factory floor space and maximizes production line efficiency. The machine can also be used as a standard injection molding machine for a wide range of plastic resins, further de-risking the investment in the machine and maximizing its utility.
CYPET molds are designed and optimized to produce the best quality container in the most economical way. Our molds are based on the two stage technology and made from high grade stainless steel. To ensure high-quality end products, CYPET injection molds are equipped with naturally balanced, valve gated hot runner with top quality components for easy maintenance.
The Injection Stretch Blow Molding process requires a range of Auxiliary equipment to ensure ideal conditions for PET container production. These include:
CYPET can supply the full suite of required machinery or can advise on the correct characteristics for direct purchasing from a list of recommended suppliers.
